Precision Injection Molding Screw yePlastiki Jekiseni Machina

Inowanzo shandiswa jekiseni molding screw modhi:

Nhamba Yejekiseni (g)	Chikururu Diameter X Kureba (mm)	Bharel Diameter X Kureba (mm)	Nhamba Yejekiseni (g)	Chikururu Diameter X Kureba (mm)	Bharel Diameter X Kureba (mm)
30-90	Φ30x900	Φ85x860	80-125	Φ75x1825	Φ170x1725
60-125	Φ35x910	Φ85x860	100-150	Φ80x2000	Φ180x1805
100-150	Φ38x935	Φ95x900	125-200	Φ85x2300	Φ190x1900
125-160	Φ40x980	Φ95x910	200-300	Φ90x2700	Φ210x2000
125-300	Φ42x1030	Φ105X1110	250-500	Φ100x2600	Φ230x2405
250-400	Φ45x1210	Φ115x1165	300-600	Φ110x2600	Φ256x2590
300-500	Φ50x1300	Φ125x1260	400-1000	Φ120x2800	Φ256x2800
450-600	Φ55x1335	Φ130x1320	600-800	Φ130x3010	Φ256x2970
500-700	Φ56x1350	Φ130x1350	800-1000	Φ145x3010	Φ256x3200
500-700	Φ60x1380	Φ140x1350	1000-1500	Φ160x3500	Φ270x3200
650-800	Φ65x1415	Φ150x1420	1300-2500	Φ170x3415	Φ317X3380
700-1000	Φ70x1790	Φ160x1685

Nanhaiya's jekiseni rekuumba screws rakagadzirwa ne38CrMoALA alloy simbi, inopisa-yakagadziriswa, yakakodzera kugadzirisa mapurasitiki asingaore sePE nePP, ane hupenyu hwesevhisi hwemaawa angangoita gumi,000-20,000. Mushure mekudzima uye kupisa, shear kupfeka kuramba kunowedzerwa ne50%, zvichiita kuti ive yakakodzera kugadzirisa mapurasitiki akasimbiswa ane girazi fiber (≤30%) (senge PA + girazi fiber). Isu tinodhidha majekiseni ekuumba majekiseni, tichiita gasi nitriding pa500-560 ℃ kugadzira nitrided layer ine ukobvu hwe0.5-0.8mm (kuoma 950-1050HV), iyo inogona kuvandudza kusakara kwekupfeka ne30% -40%.

Injection molding screws inogona kushandiswa ku:PE, PP, PS, ABS. Zvikumbiro zvinosanganisira: PVC pombi fittings, epurasitiki gonhi uye hwindo accessories; PA motokari injini peripheral zvikamu; PBT LED mwenje vabati uye magetsi connectors; uye girazi faibha yakasimbisa PA uye kabhoni fiber yakasimbisa PC zvigadzirwa.

View as

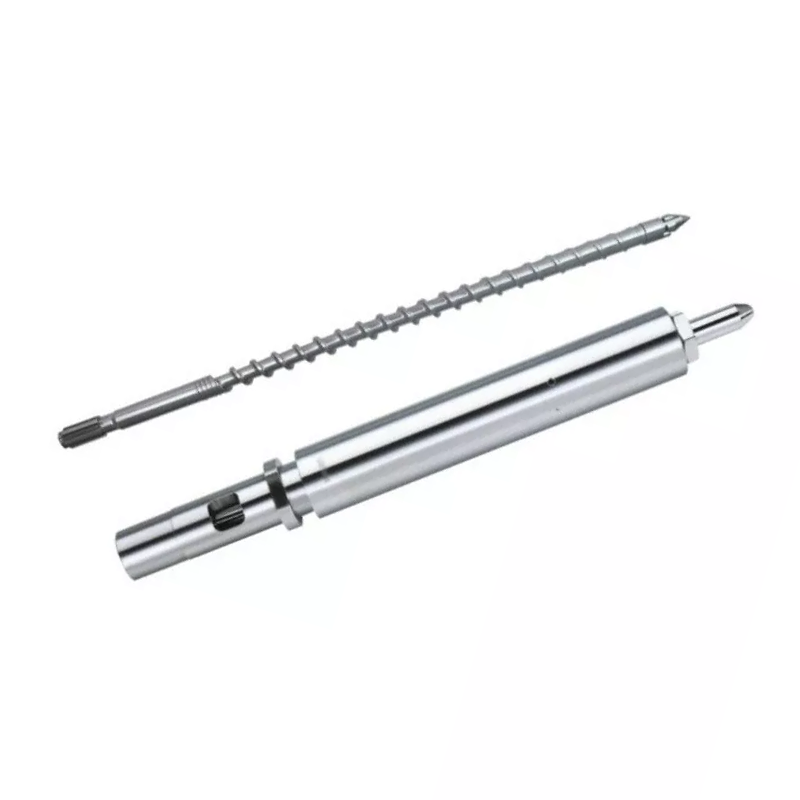

Mutant Injection Molding Screw

Zhoushan Nanhaiya Plastic Machinery Co., Ltd ndeimwe yevagadziri vekutanga nyanzvi muChina inyanzvi muMutant Injection Molding Screw nemadhiramu emichina yekuumba sol-gel. Neanopfuura makore gumi eruzivo mumakina epurasitiki, zvigadzirwa zvedu zvemhando yepamusoro, zvemainjiniya zvakatipa chivimbo chevatengi pasi rese. Mutengo wedu wepamusoro wemutated jekiseni molding screws unobata kumisika yakasiyana. Isu tinotarisira kuve shamwari yako yenguva refu muChina.

View More >> Send Inquiry >>

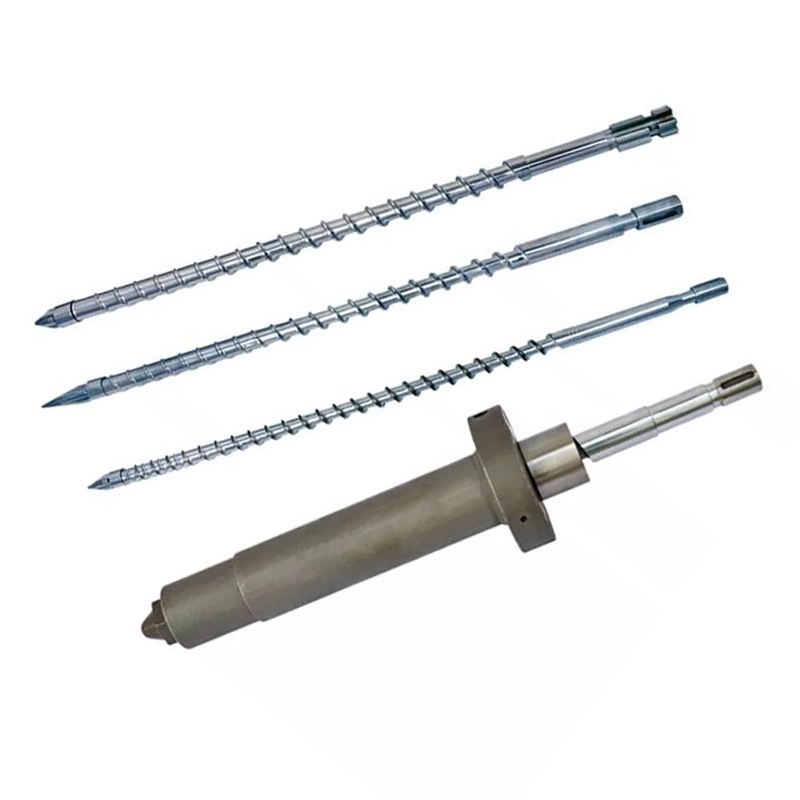

Zvishoma nezvishoma jekiseni Molding Screw

Zhoushan Nanhaiya Plastic Machinery Co., Ltd ndeimwe yevagadziri vekutanga muChina vanonyanya kugadzira masiruuru nemadhiramu emichina yekuumba sol-gel. Neanopfuura makore gumi eruzivo mumakina epurasitiki, zvigadzirwa zvedu zvemhando yepamusoro, zvemainjiniya zvakatipa chivimbo chevatengi pasi rese. Mutengo wedu wepamusoro weyedu zvishoma nezvishoma jekiseni rekugadzira screw rinopa kune misika yakasiyana. Isu tinotarisira kuve shamwari yako yenguva refu muChina.

View More >> Send Inquiry >>

Injection Molding Screw kubva kuNanhaiya inopa zvemhando yepamusoro, zvigadziriso zvinogara zvine kukurumidza kuendesa uye netsika dhizaini sarudzo. Bata nesu nhasi pamitengo yemakwikwi.
